BLUETTI B230 Expansion Battery | 2048Wh แบตเตอรี่เสริมสำหรับ Bluetti AC200MAX

BLUETTI B230 Expansion Battery | 2048Wh

แบตเตอรี่เสริมสำหรับ Bluetti AC200MAX

• B230 equipped with 2048Wh capacity.
• One 100W USB-C, a 12V/10A car output and a USB-A ports.
• Versatile power inputs allow you to recharge no matter where you are.
• Solar charging, car charging and lead-acid battery charging need to be realized through D050S

BATTERY INFO

• Capacity: 2048Wh (51,2V,40Ah)
• Type: LiFePO4 (Lithium Iron Phosphate)
• Life Cycles: 3,500+ Cycles to 80% Original Capacity
• Shelf-life: Recharge to 80% Every 3-6 Months
• Management System: MPPT Controller, BMS, etc.

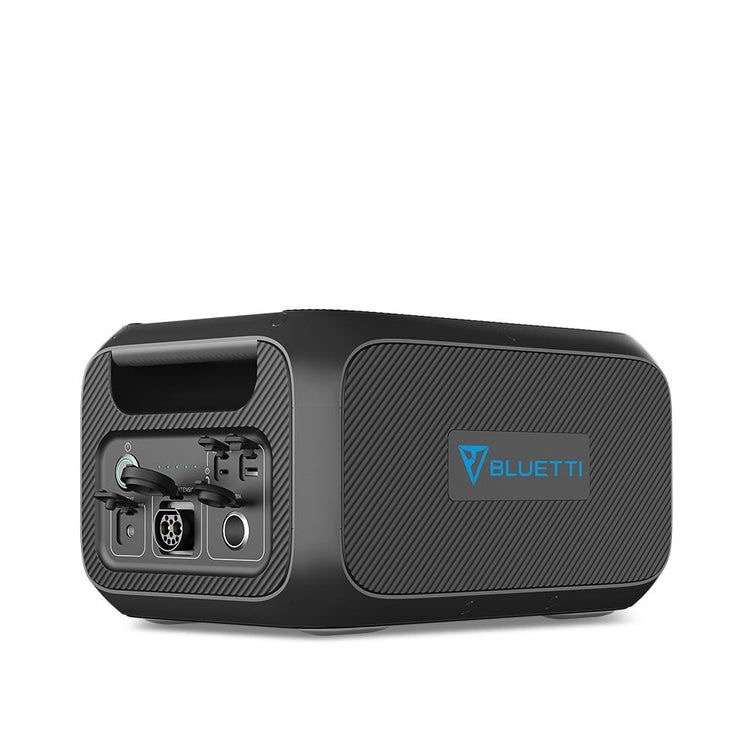

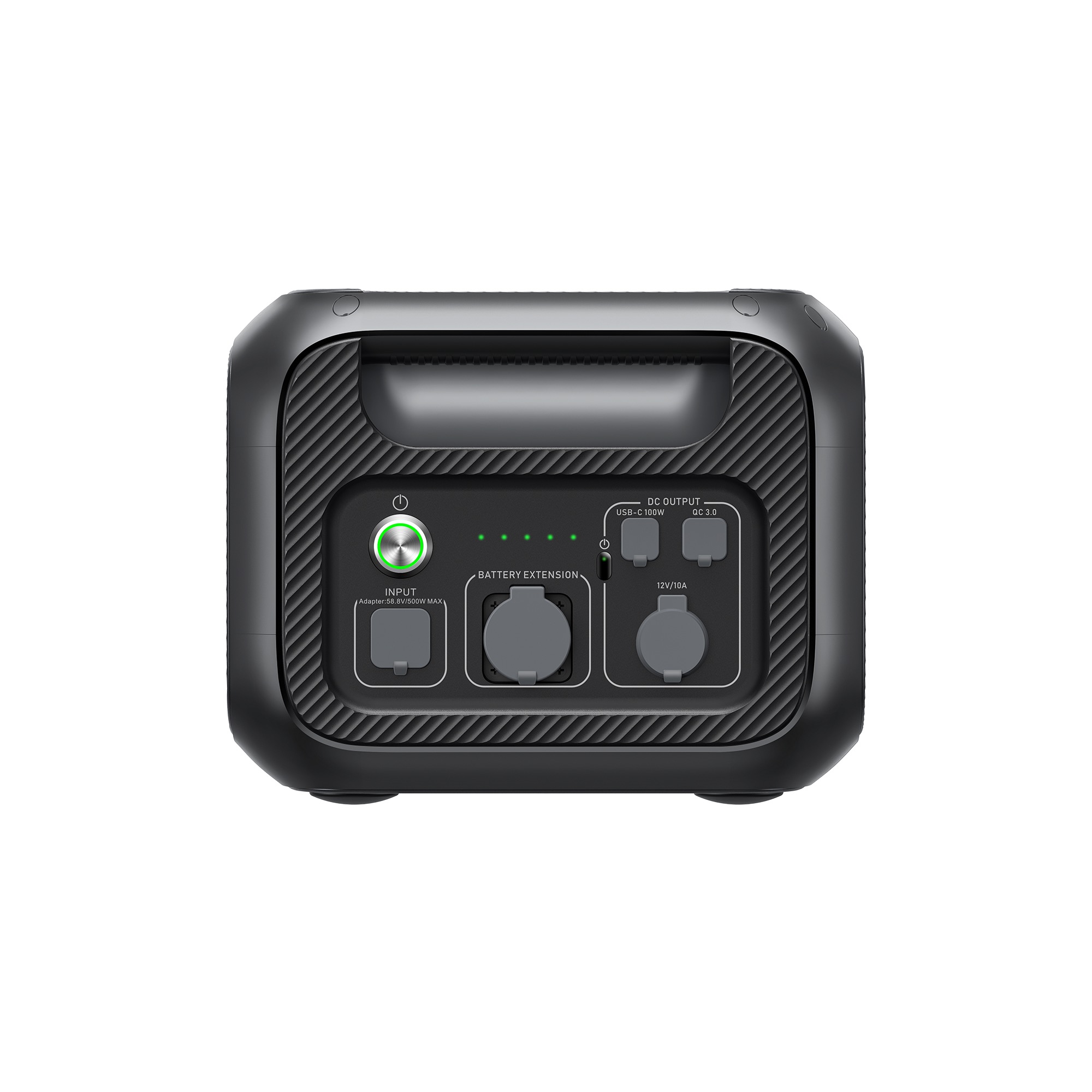

OUTPORTS

• USB-C Port: 1 x 100W Max.
• USB-A Port: 1 x 18W USB-A
• 12V DC Outlets: 1 x 12VDC (Car Outlet)

INPUT

• AC Adapter Input: 500W Max.
• Solar Input: 500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S)
• Car Input: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
• Lead-acid battery: 12/24V from Cigarette Lighter Port (Via BLUETTI D050S)
• Max Input: 500W

RECHARGE TIMES

• AC Adapter (500W): ≈6,5~7 Hours
• Solar (200W): ≈15,5~16 Hours (With prime sunshine, ideal orientation and low temperature)
• 12V/24V Car Outlet (100W/200W): ≈10 or 20 Hours

GENERAL

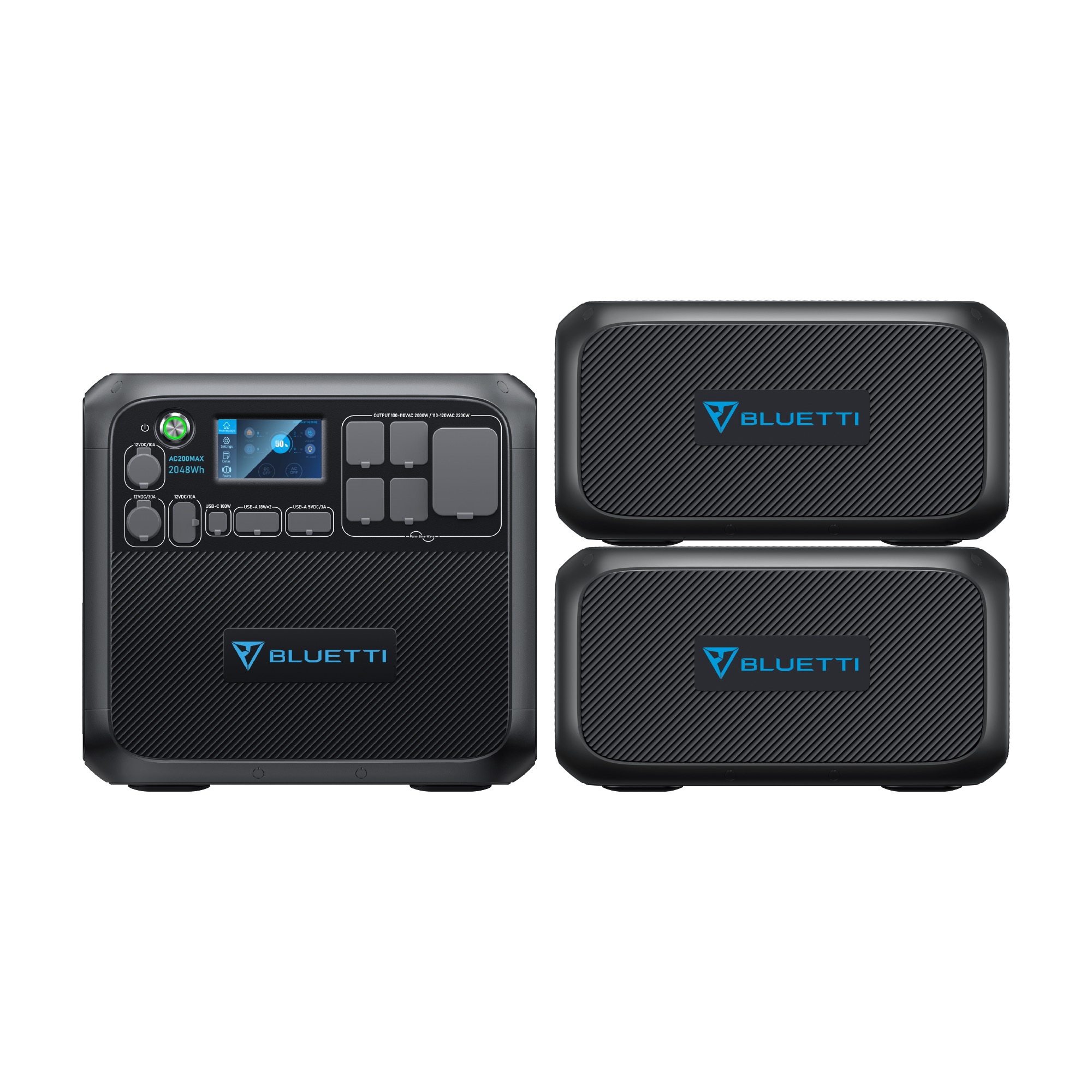

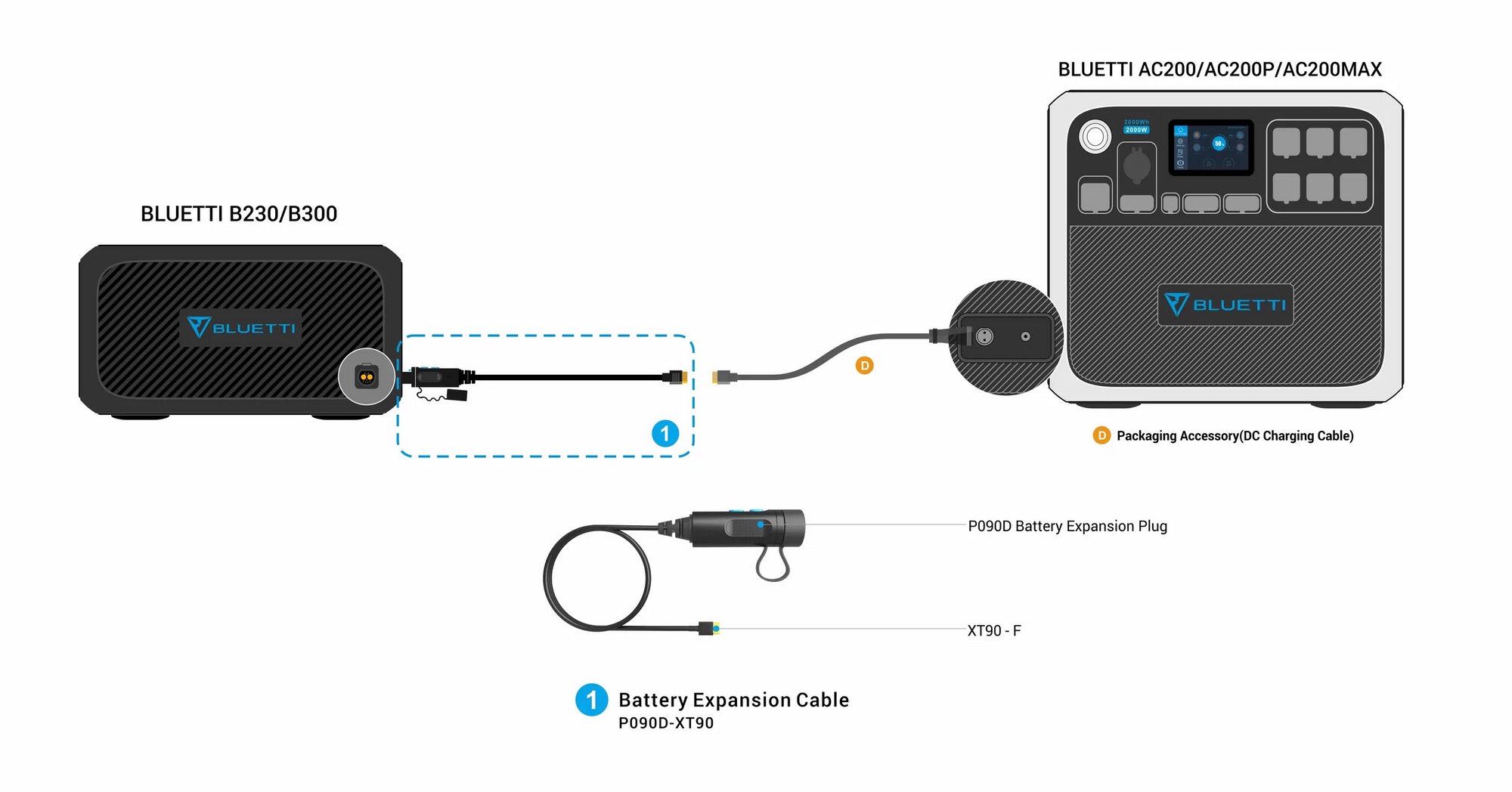

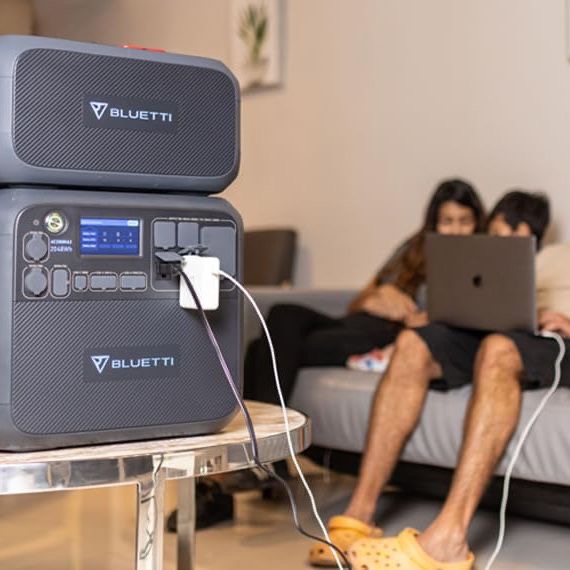

• Compatibility: AC200Max (Original Expansion), AC200P/EB150/EB240 (DC-DC Connection via D050S)
• Pass-through Charging: Yes
• Weight: 48lbs (21,8kg)

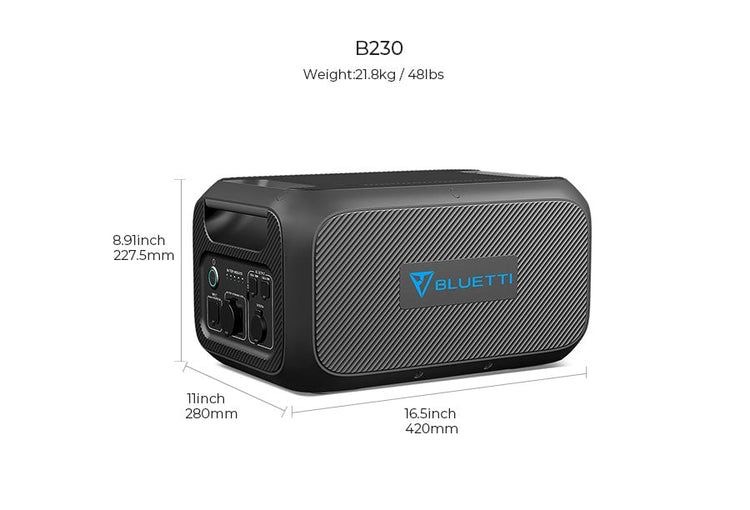

• Dimensions (LxWxD): 16,5 x 11 x 8,9in ( 42 x 28 x 22,75cm)
• Operating Temperature: 32°F-104°F (0-40°C)
• Storage Temperature: -4-104℉(-20-40℃)
• Certifications: UL2743, UKCA, RCM, PSE, FCC, CE
• Warranty: 2 Years

BLUETTI B230 Expansion Battery | 2048Wh MANUAL
